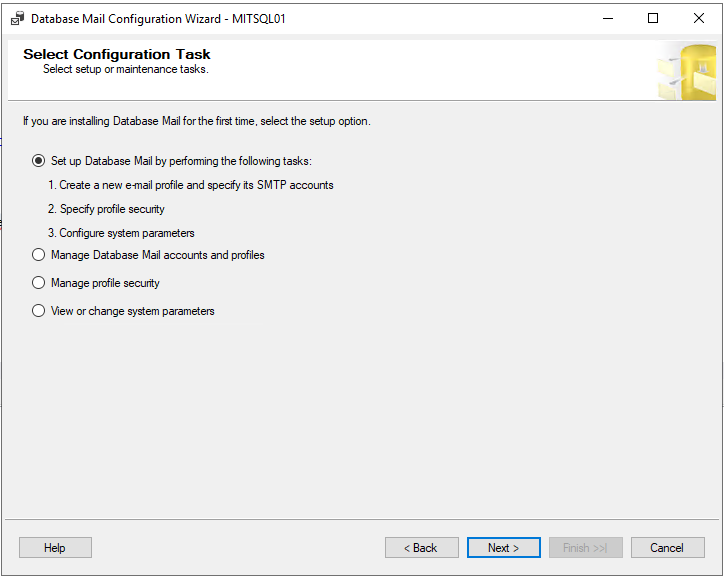

Setup Mail SMTP

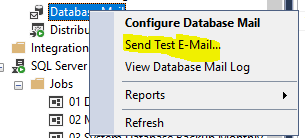

Right-Click on Database Mail, test email.
Setup Operator
Enable Mail Profile
Right-Click on SQL Server Agent, select Properties and enable mail profile in Alert System.
Setup Notification in Job

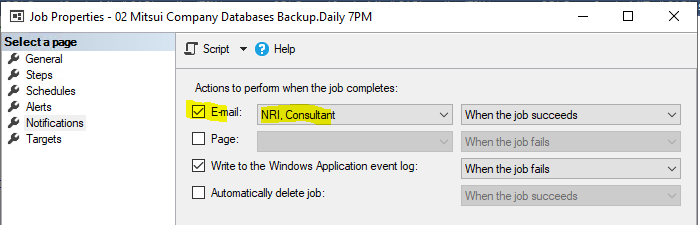

In Job properties, select Notification and enable E-mail.
Troubleshoot
USE msdb
GO
EXEC sp_configure 'show advanced', 1;
RECONFIGURE;
EXEC sp_configure;
GO
-- Check DB Mail Service whether is active.
EXEC dbo.sysmail_help_status_sp
-- Check Mail Service Status
EXEC msdb.dbo.sysmail_help_queue_sp @queue_type = 'Mail';
-- List last 10 email queue
SELECT TOP 10 sent_status, *
FROM dbo.sysmail_allitems WITH(NOLOCK READUNCOMMITTED)
ORDER BY send_request_date desc
-- List email queue
Select count(*) from ExternalMailQueue
-- List email log
SELECT * FROM msdb.dbo.sysmail_event_log ORDER BY 1 DESC
